7S Mixed Bill Counter Money Sorter

Application
The 7S mixed bill counter money sorter is mainly applied to counting and authenticating banknotes, and classifying bills from various countries. The product accommodates to various sorting demands of banks, stock trading offices and so on.
Our product can count and sort up to dozens of currency including EUR, USD, GBP, HKD, JPY; additionally, serial numbers of USD, EUR, RMB, TRL and HKD can be displayed. Advanced features such as auto-detection of banknotes and mixed bill counting are also supported.
The product can sort the banknotes according to one or more of the criteria below: currency, denomination, orientation, fitness and authentication.

Specification
Counting Speed: 900 pcs/min
Serial Number Scanning: USD, EUR, RMB, TRL, HKD
Interface: USB, RJ11, TF card interface, DB9 serial port

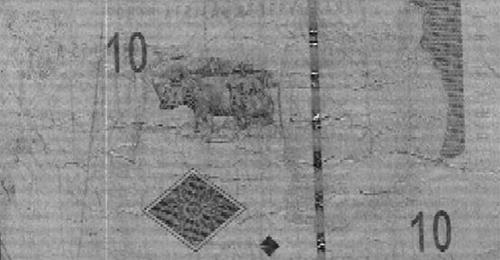

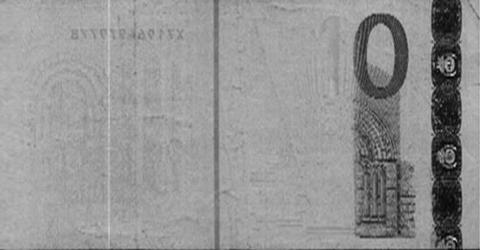

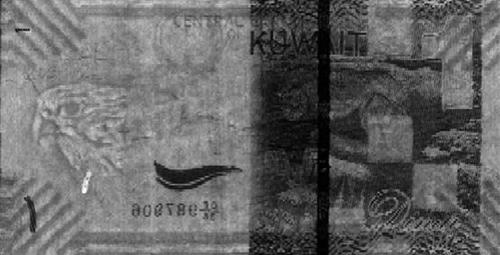

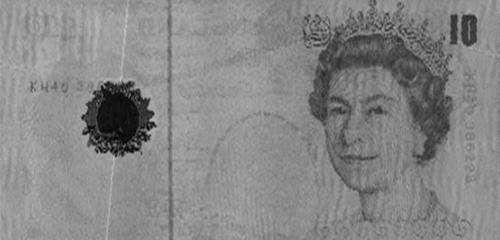

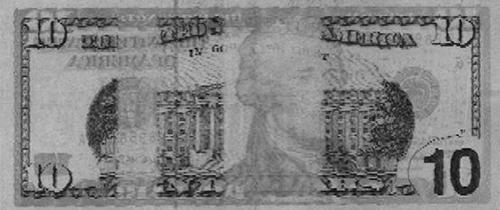

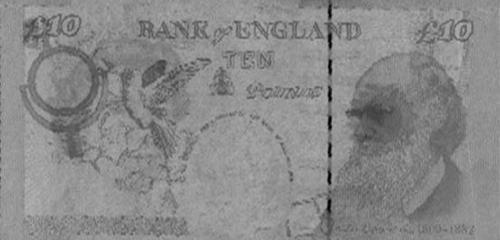

5-point Counterfeit Detection: UV detection / MG detection / IR detection/ IMAGE / SIZE
Feed System: roller friction system
Display: 3.5 inch TFT LCD
Options: remote display / thermal printer
Hopper Size: 60*85*0.08mm - 100*190*0.12mm
N.W.: 5.88 KG
G.W.: 8 KG
Dimensions: 258mm*340mm*202mm
Power Supply:AC 100 - 240V 50HZ / 60HZ
Power Consumption: ≤ 45W
Hopper Capacity: MAX.200 pcs
Stacker Capacity: MAX.200 pcs

Feature
1. The 7S mixed bill counter money sorter employs a horizontal hopper design, reducing noise in work.
2. A dust-proof designed is applied.
3. The money sorter uses modularized multi-sensor detection to authenticate banknotes with accuracy and high efficiency.
4. The head cover can be removed, making the device convenient to maintain and to handle stuck notes.

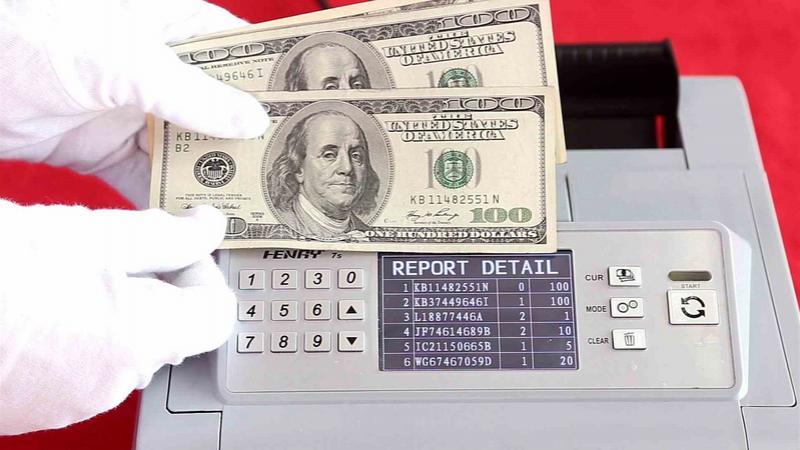

5. A high resolution TFT GUI with touch screen is attached, which works as an interface to a serial number identification and information processing application.
6. Virtual meters, such as memory oscilloscope, are integrated to simplify assembling, commissioning and repairing process.
7. Configuration sets can be stored in settings panel, achieving high availability.

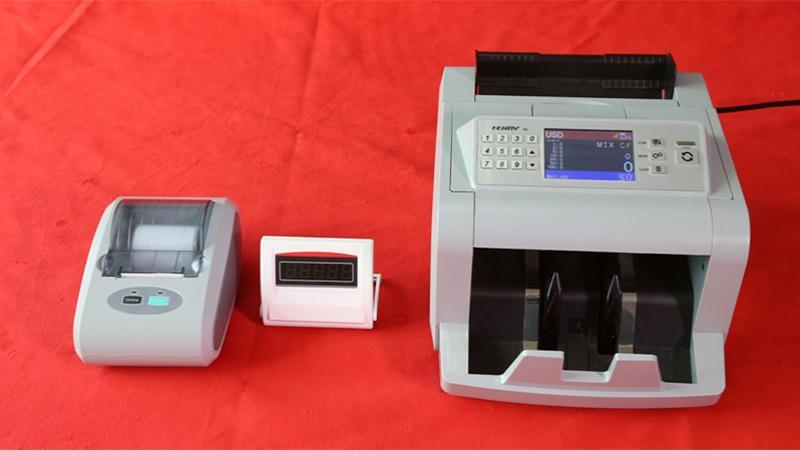

8. Remote display and thermo-sensitive printers can be connected to the device.

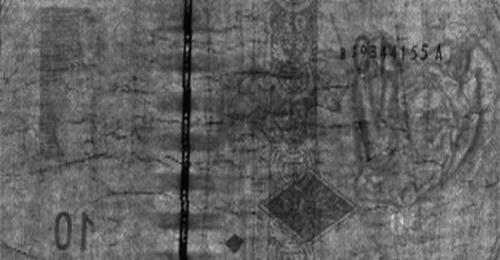

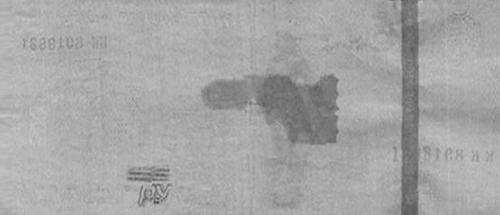

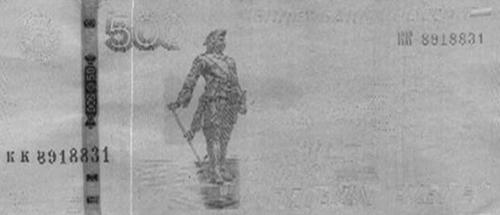

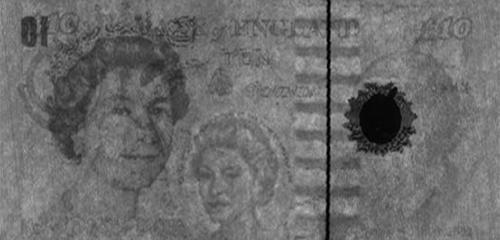

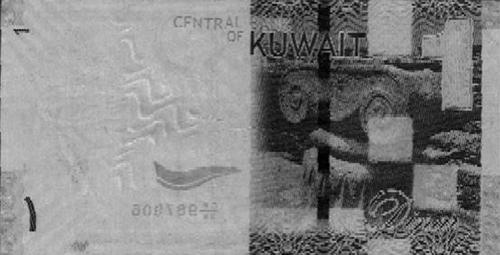

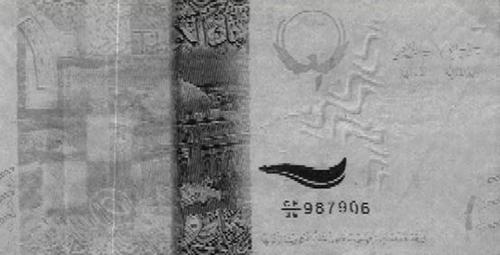

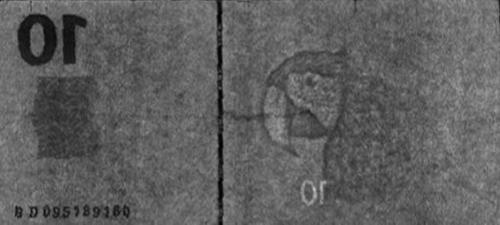

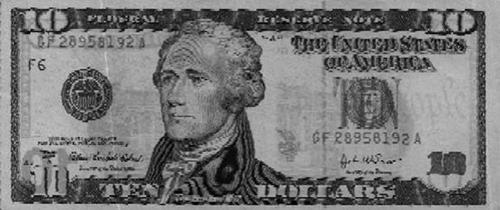

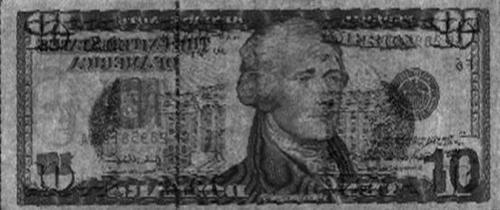

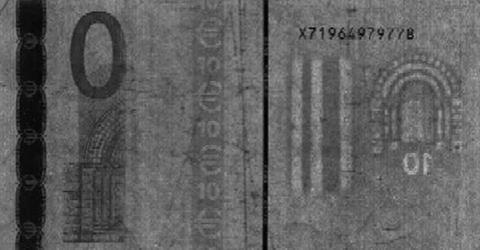

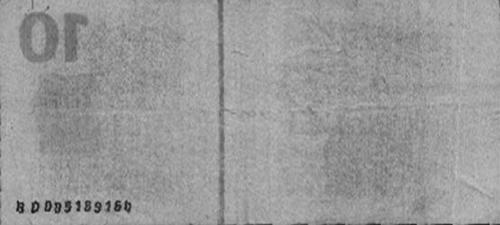

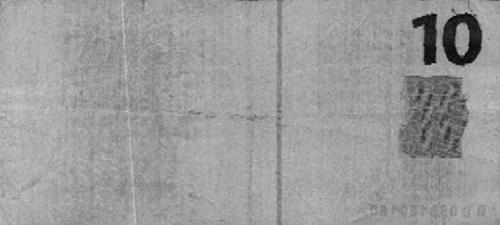

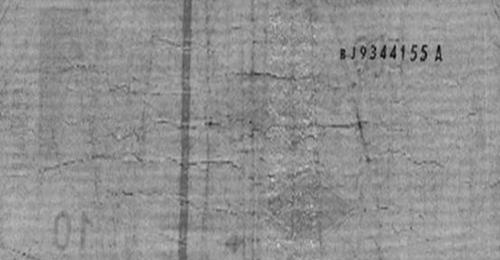

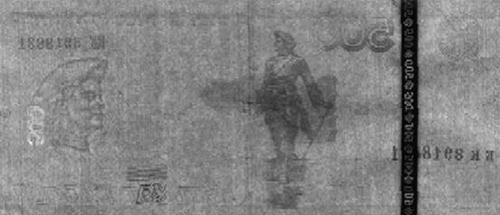

9. Besides, utilities such as image processing, self-check, error/warning messages, operation guidance and data analysis are provided to improve user experience.

On introducing new currency
It is safe and easy to introduce previously unrecognized currency. Connect The The 7S mixed bill counter money Sorter to a PC by USB, and the metadata of the banknote will be collected automatically during sorting. Send the data to Henry Tech, and we will send an update program to you to support the dedicated currency.
By default the sorter supports 4 kinds of currency: USR, EUR, GBP and an extra currency specified.
The banknote sorter supports auto detection of the 4 kinds. For instance, the user may count EUR right after counting USD without explicit switching of options.
The sorting machine also supports sorting and counting mixed banknotes. For instance, a mixed batch of USD, EUR and local currencies can be accepted by the device without presorting. During sorting, the monetary total of each currency will accumulate simultaneously.

Package contents
7S mixed bill counter money sorter, Power cord, User manual, Microfiber tower, CIS adjust paper
