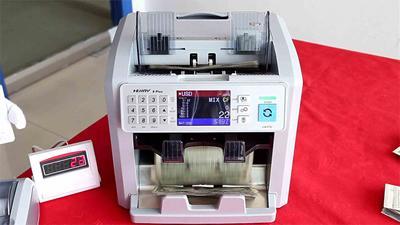

8 Plus Mixed Bill Counter Money Sorter

Application
The 8 Plus mixed bill counter money sorter is designed to help customers count and identify banknotes, and classify bills from various countries with ease.
The 8 Plus mixed bill counter money sorter has the functions of sorting, authenticating and counting banknotes, as well as calculating or preseting monetary total of the bills. It also supports auto-detection of currency and mixed counting of bills.
Its parameters can be configured to meet the demands of customers, including maximum count of notes, sorting pattern and dispensing mechanism.
Sorting pattern includes one or more of the following criteria: currency, denomination, orientation, authentication and fitness.

Specification
Counting Speed: 900 pcs/min
Serial Number Scanning: USR, EUR, RMB, TRY, HKD
5-point Counterfeit Detection: UV detection/ MG detection/ IR detection/ IMAGE / SIZE
Interface: USB, RJ11, serialPort
Feed System: roller friction system
Display: 3.5 inch TFT LCD
Options: remote display / thermal printer
Hopper Size: 60*85*0.08mm - 100*190*0.12mm
N.W.: 10.0 KG
G.W.: 12.0 KG
Dimensions: 280mm*260mm*315mm
Power Supply: AC 100 - 240V 50HZ / 60HZ
Power Consumption: ≤ 50W
Hopper Capacity: MAX.500 pcs
Reject Capacity: Max.80 pcs
Stacker Capacity: MAX.200 pcs

Feature
1. The 8 Plus mixed bill counter money sorter applies a vertical hopper structure to reduce noise in work.
2. The sorter equips itself with dust-proof design.
3. The counting machine caters to demands of bill counting/banknote sorting under various contexts, including requirements of high standard in the banks;
4. Modularized multi-sensor detection is applied in identification process, leading to efficiency in authentication banknotes and accuracy in excluding counterfeits;
5. The reject stacker can be removed from the device, which simplifies maintenance and jamming notes handling;
6. The bill sorter attaches a high resolution TFT GUI for a serial number identification and information processing application, with easy-to-operate touch-screen utility;
7. Virtual meters such as memory oscilloscope are integrated to simplify assembling, commissioning and repairing of the device, resulting in significant cost reduce;
8. The sorter stores multiple configuration sets in function setting panel to achieve better availability;
9. The device allows connection from external display and thermo-sensitive printer.
10. Besides, The 8 Plus mixed bill counter money sorter also employs utilities such as self-check, error/warning messages, operation guidance and data analysis.

On introducing new currency
Connect The 8 Plus Mixed Bill Counter Money Sorter to a PC by USB, and the device will automatically collect metadata of the banknote during sorting. Send the data to Henry Tech, and we will send an update program to you to support the dedicated currency.
On purchase, The 8 Plus Mixed Bill Counter Money Sorter is configured to support 4 kinds of currency: USR, EUR, GBP, and an extra currency specified. All currencies can be automatically detected by the device. For instance, USD can be sorted right after soring EUR without manually switching the currency being sorted.
Besides, the sorting machine also supports mixed currency counting. For instance, a mixed batch of banknotes containing USD, EUR and local currencies can be sorted smoothly by the device, with monetary total of each currency accumulated accurately.

Package contents
8 Plus Mixed Bill Counter Money Sorter, Power cord, User manual, Microfiber tower, CIS adjust paper
